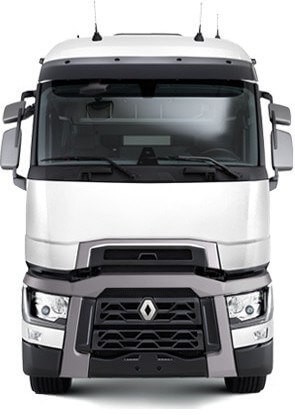

TECHNICAL SHEET RENAULT Tractor unit RENAULT T HIGH T HIGH 480 T6X2 PUSHER E6 ¹

Main characteristics

Range	T HIGH
Model	T HIGH 480 T6X2 PUSHER E6
Type of vehicle	Tractor
Axles configuration	6x2
Empty weight	-
GVWR	26 000 kg
Maximum allowable weight	44 000 kg
Max. front weight	7 500 kg
Max. back weight	-

Used renault tractor unit Used renault t-high tractor units

Measurements Tractor unit RENAULT T HIGH T HIGH 480 T6X2 PUSHER E6

	High Sleeper cab
Model	39	41
A / Overall length	6,280 m	6,480 m
B / Width	2,492 m
C / Chassis cab width	-
D / Chassis cab width rear under-frame	-
E / Front overhang	1,365 m
F / Wheel base	3,900 m	4,100 m
H1 / Empthy chassis height (front)	0,991 m	0,989 m
H1 / Loaded chassis height (front)	0,938 m
N / Rear overhang	1,015 m
T / Empty cab height	3,881 m	3,879 m
Y / Max. fifth wheel lead	0,416 m	0,431 m
Y / Minimum fifth wheel lead	0,319 m	0,328 m
Y / Standard fifth wheel lead	0,725 m	0,925 m
Turning radius inbetween walls	6,206 m	6,506 m

Masses

	High Sleeper cab
Model	39	41
Total weight	8 586 kg	8 681 kg
Load capacity	17 489 kg	17 394 kg
Minimum weight on front axle	-
Minimum weight on rear axle	-
Chassis cab front axle weight	5 423 kg	5 480 kg
Chassis cab rear axle weight	3 163 kg	3 201 kg

Engines

Name	DTI 13
Administrative power	34 cv
Bore × stroke	131 x 158 mm
Coolant (without retarder)	-
Cooling circuit (with retarder)	-
Engine size	12,8 l
Max. power	353 kW de 1404 à 1800 tr/min
Maximum torque	2400 Nm de 950 tr/min à 1404 tr/min
Motor retarder - braking power	-
Name	DTI 13
Oil capacity	-
