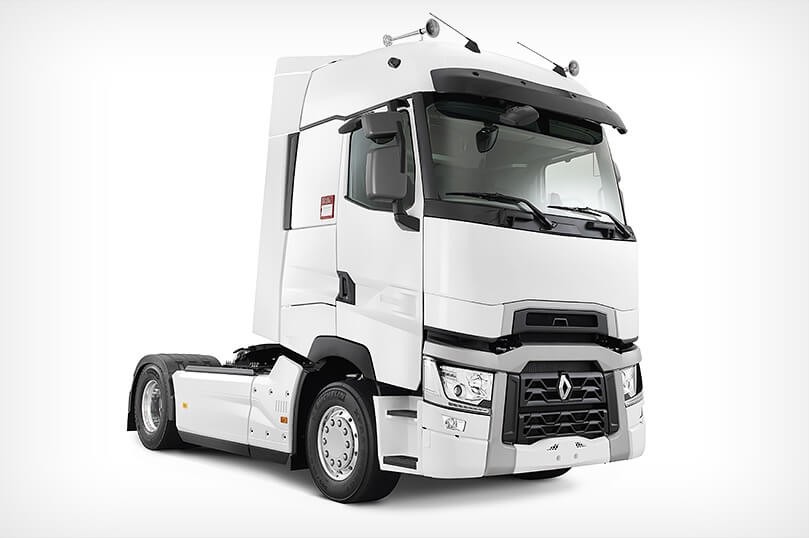

FICHE TECHNIQUE RENAULT Tractor unit RENAULT T HIGH T HIGH 480 T4X2 X-LOW E6
Main characteristics
| Range | T HIGH |
| Model | T HIGH 480 T4X2 X-LOW E6 |
| Type of vehicle | Tractor |
| Axles configuration | 4x2 |
| Empty weight | - |
| GVWR | 18 000 kg |
| Maximum allowable weight | 44 000 kg |
| Max. front weight | 6 700 kg |
| Max. back weight | 11 500 kg |
Dimensions
| High Sleeper Cab | ||
|---|---|---|
| Model | 37 | 38 |
| A / Overall length | 5,890 m | 5,990 m |
| B / Width | 2,490 m | |
| C / Chassis cab width | - | |
| D / Chassis cab width rear under-frame | - | |
| E / Front overhang | 1,365 m | |
| F / Wheel base | 3,700 m | 3,800 m |
| H1 / Empthy chassis height (front) | 0,834 m | |
| H1 / Loaded chassis height (front) | 0,827 m | |
| N / Rear overhang | 0,825 m | |
| T / Empty cab height | 3,741 m | |
| Y / Max. fifth wheel lead | 0,459 m | 0,466 m |
| Y / Minimum fifth wheel lead | 0,389 m | 0,394 m |
| Y / Standard fifth wheel lead | 0,525 m | 0,625 m |
| Turning radius inbetween walls | 6,646 m | 6,846 m |
Masses
| High Sleeper Cab | ||
|---|---|---|
| Model | 37 | 38 |
| Total weight | 7 513 kg | 7 524 kg |
| Minimum weight on front axle | - | |
| Minimum weight on rear axle | - | |
| Chassis cab front axle weight | 5 464 kg | 5 481 kg |
| Chassis cab rear axle weight | 2 049 kg | 2 043 kg |
Engines
| Name | DTI 13 |
| Administrative power | 34 cv |
| Bore × stroke | 131 x 158 mm |
| Coolant (without retarder) | - |
| Cooling circuit (with retarder) | - |
| Engine size | 12,8 l |
| Max. power | 323 kW de 1404 à 1800 tr/min |
| Maximum torque | 2200 Nm de 900 tr/min à 1404 tr/min |
| Motor retarder - braking power | - |
| Name | DTI 13 |
| Oil capacity | - |
Used renault t-high tractor units
1

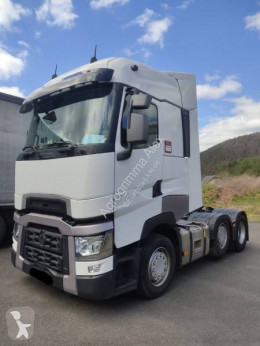

Renault T-High 520 T4X2 E6
