TECHNICAL SHEET RENAULT T 380 T6X2 LOW E6

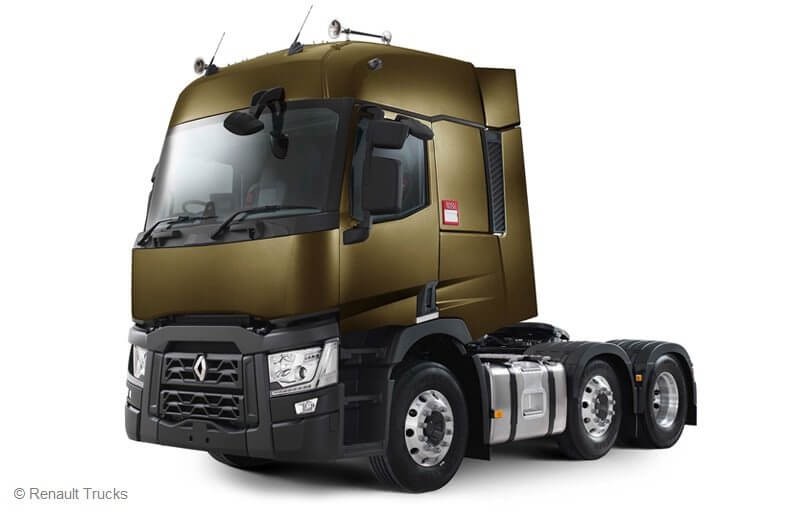

Tractor unit RENAULT T 380 T6X2 LOW E6 T 1

RENAULT T 380 T6X2 LOW E6

Main characteristics

Range T
Model 380 t6x2 low e6
Type of vehicle Tractor unit
Axles configuration 6x2
GVWR 26 000 kg
Maximum allowable weight 44 000 kg
Max. front weight 7 500 kg
Max. rear weight 1 11 500 kg
Max. rear weight 2 7 500 kg

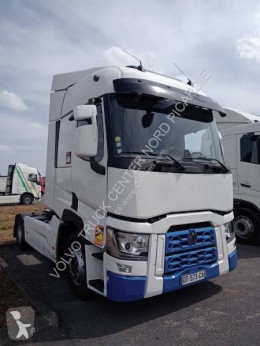

used Renault Used Renault Gamme T tractor unit
380 T6X2 LOW E6

Measurements Tractor unit RENAULT T 380 T6X2 LOW E6 T

380 T6X2 LOW E6
Sleeper cab
Wheel base323437

A / Overall length

6,740 m6,940 m7,240 m

B / Width

2,500 m

C / Chassis cab width

-

D / Chassis cab width rear under-frame

-

E / Front overhang

1,365 m

F / Wheel base

3,200 m3,400 m3,700 m

N / Rear overhang

0,825 m

H1 / Empthy chassis height (front)

0,869 m

H1 / Loaded chassis height (front)

0,858 m

T / Empty cab height

3,530 m

Y / Minimum fifth wheel lead

0,446 m0,467 m0,498 m

Y / Max. fifth wheel lead

0,549 m0,576 m0,616 m

Y / Standard fifth wheel lead

-

Turning radius inbetween walls

6,706 m7,056 m7,506 m

Masses

Sleeper cab
Wheel base323437

Engines DTI 11

NameDTI 11
Engine size10,8 l
Bore × stroke 123 x 152 mm
Administrative power29 cv
Max. power279 kW de 1700 à 1850 tr/min
Maximum torque1800 Nm de 950 tr/min à 1400 tr/min
Oil capacity-
Cooling circuit (with retarder)-
Coolant (without retarder)-
Motor retarder - braking power-
Key
  • : Standard equipment
  • : Equipments in option

Notes :

1 The information and pictures of this technical sheet are given on an indicative basis. All these data may be modified by the manufacturer. For more information, you can directly go to your dealership.
