TECHNICAL SHEET RENAULT T 380 T4X2 X-LOW E6

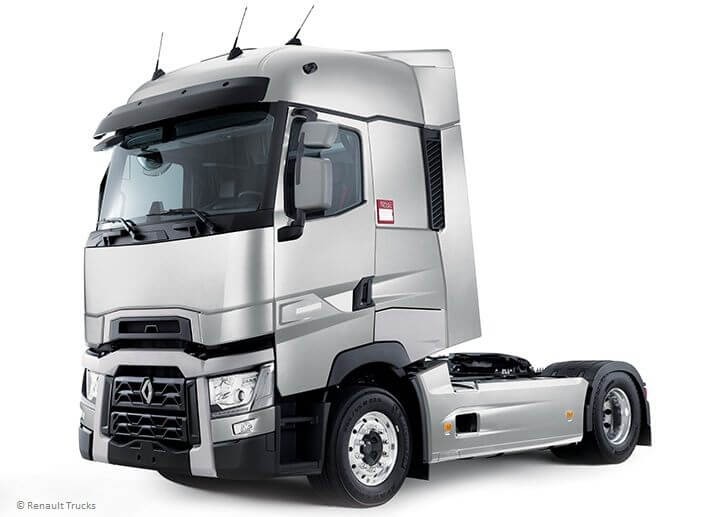

Tractor unit RENAULT T 380 T4X2 X-LOW E6 T 380 T4X2 X-LOW E6 ¹

Main characteristics

Range	T
Model	380 t4x2 x-low e6
Type of vehicle	Tractor
Axles configuration	4x2
GVWR	18 000 kg
Maximum allowable weight	44 000 kg
Max. front weight	6 700 kg
Max. back weight	11 500 kg

Used Renault tractor unit Used Renault Gamme T tractor units

Measurements Tractor unit RENAULT T 380 T4X2 X-LOW E6 T 380 T4X2 X-LOW E6

	Sleeper cab
Wheel base	37	38
A / Overall length	5,890 m	5,990 m
B / Width	2,479 m
C / Chassis cab width	-
D / Chassis cab width rear under-frame	-
E / Front overhang	1,365 m
F / Wheel base	3,700 m	3,800 m
N / Rear overhang	0,825 m
H1 / Empthy chassis height (front)	0,835 m
H1 / Loaded chassis height (front)	0,827 m
T / Empty cab height	3,496 m
Y / Minimum fifth wheel lead	0,150 m
Y / Max. fifth wheel lead	0,850 m
Y / Standard fifth wheel lead	0,575 m	0,675 m
Turning radius inbetween walls	6,646 m	6,846 m

Masses

	Sleeper cab
Wheel base	37	38

Engines DTI 11

Name	DTI 11
Engine size	10,8 l
Bore × stroke	123 x 152 mm
Administrative power	29 cv
Max. power	279 kW de 1700 à 1850 tr/min
Maximum torque	1800 Nm de 950 tr/min à 1400 tr/min
Oil capacity	-
Cooling circuit (with retarder)	-
Coolant (without retarder)	-
Motor retarder - braking power	-

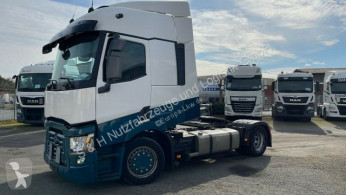

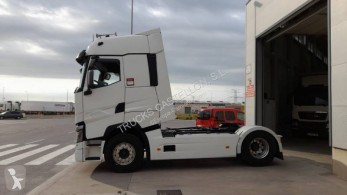

Used tractor unit Renault Gamme T 460

Used tractor unit Renault Gamme T 480 T4X2 E6

4x2Euro 6480 HP

201672 842 kmMaterial warranty

France - Massy (91)

Used tractor unit Renault Gamme T 460

4x2Euro 6460 HP

2015421 000 km

France - Halluin (59)

Used tractor unit Renault Gamme T 480 T4X2 E6

27,500 €

4x2Euro 6480 HP

2016680 000 km

Spain - Molina De Segura - Murcia

Used tractor unit Renault Gamme T 480 DXI

4x2Euro 6480 HP

2016569 769 km

France - Orange (84)

Used tractor unit Renault Gamme T 480 SC T4X2 COMFORT,

34,900 €

19t4x2Euro 6489 HP

2007338 140 km

Netherlands - Berkel En Rodenrijs

Used tractor unit Renault Gamme T 460 Sleep

Used tractor unit Renault Gamme T 460

23,000 €

19t460 HP

2015428 498 km

France - Poitiers Cédex 09 (86)

Key

: Standard equipment
: Equipments in option

Notes :

¹ The information and pictures of this technical sheet are given on an indicative basis. All these data may be modified by the manufacturer. For more information, you can directly go to your dealership.
