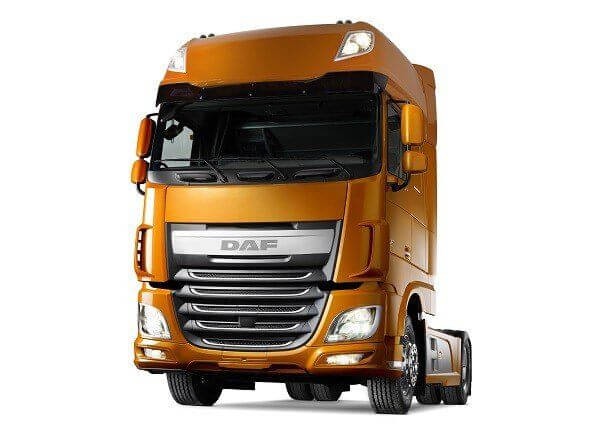

TECHNICAL SHEET DAF Tractor unit DAF XF FT XF 105 Space Cab GV 18.0 V 1 DAF

Main characteristics

Range XF
Model FT XF 105 Space Cab GV 18.0 V
Type of vehicle Tractor
Axles configuration 4x2
Empty weight -
GVWR 17 990 kg
Maximum allowable weight 44 000 kg
Max. front weight 7 100 kg
Max. back weight 12 300 kg
FT XF 105 Space Cab GV 18.0 V

Measurements Tractor unit DAF XF FT XF 105 Space Cab GV 18.0 V

dimensions
SpaceCabComfortCab
Model36383638
A / Overall length5,96 m6,16 m5,96 m6,16 m
B / Width2,49 m
C / Chassis cab width1,07 m
D / Chassis cab width rear under-frame-
E / Front overhang-
F / Wheel base3,60 m3,80 m3,60 m3,80 m
H1 / Empthy chassis height (front)0,94 m
H1 / Loaded chassis height (front)0,92 m
N / Rear overhang0,99 m
T / Empty cab height3,58 m
Y / Max. fifth wheel lead 0,68 m0,72 m0,69 m0,72 m
Y / Minimum fifth wheel lead0,21 m0,22 m0,22 m0,23 m
Y / Standard fifth wheel lead0,47 m0,67 m0,47 m0,67 m
Turning radius inbetween walls7,18 m7,45 m7,18 m7,45 m

Masses

SpaceCabComfortCab
Model36383638
Total weight6 945 kg6 965 kg6 915 kg6 935 kg
Minimum weight on front axle-
Minimum weight on rear axle-
Chassis cab front axle weight4 890 kg4 900 kg4 860 kg4 870 kg
Chassis cab rear axle weight2 055 kg2 065 kg2 055 kg2 065 kg

Engines

NameMX300MX340MX375
Administrative power34 cv34 cv34 cv
Bore × stroke---
Coolant (without retarder)---
Cooling circuit (with retarder)---
Engine size---
Motor retarder - braking power---
NameMX 300MX 340MX 375
Oil capacity---
Power410 ch460 ch510 ch
Torque---
Key
  • : Standard equipment
  • : Equipments in option

Notes :

1 The information and pictures of this technical sheet are given on an indicative basis. All these data may be modified by the manufacturer. For more information, you can directly go to your dealership.
