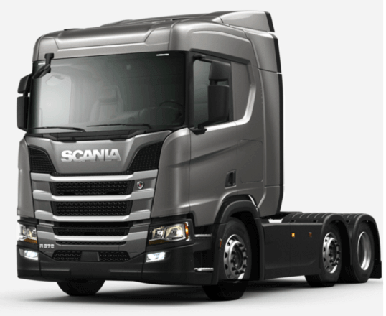

TECHNICAL SHEET Scania Tractor unit Scania R 360 / 400 / 440 / 480 Euro 5 EGR 1 Scania

Main characteristics

Range R
Model 360 / 400 / 440 / 480 Euro 5 EGR
Version LA6x2/4MNA(B)
Type of vehicle Tractor
Axles configuration 6x2
Empty weight -
GVWR 26 000 kg
Maximum allowable weight 44 000 kg
Max. front weight 8 000 kg
Max. back weight 18 350 kg
360 / 400 / 440 / 480 Euro 5 EGR

Measurements Tractor unit Scania R 360 / 400 / 440 / 480 Euro 5 EGR

dimensions
CR19NCR19HLCR19TL
Model404040
A / Overall length6,305 m
B / Width2,476 m
C / Chassis cab width0,925 m
D / Chassis cab width rear under-frame2,640 m
E / Front overhang1,455 m
F / Wheel base4,05 m
H1 / Empthy chassis height (front)-
H1 / Loaded chassis height (front)-
N / Rear overhang0,800 m
T / Empty cab height3,406 m
Y / Max. fifth wheel lead 0,568 m
Y / Minimum fifth wheel lead0,497 m
Y / Standard fifth wheel lead0,525 m
Turning radius inbetween walls8,2 m

Masses

CR19NCR19HLCR19TL
Model404040
Total weight8 437 kg
Minimum weight on front axle3 800 kg
Minimum weight on rear axle3 200 kg
Chassis cab front axle weight5 205 kg
Chassis cab rear axle weight3 232 kg

Engines

NameDC13 05 400 XPI - Scania EGRDC13 06 360 XPI - Scania EGRDC13 07 480 XPI - Scania EGRDC13 10 440 XPI - Scania EGR
Administrative power34 cv34 cv34 cv34 cv
Bore × stroke130 mm x 160 mm130 mm x 160 mm130 mm x 160 mm130 mm x 160 mm
Coolant (without retarder)----
Cooling circuit (with retarder)44 l (+20 l)44 l (+20 l)44 l (+20 l)44 l (+20 l)
Engine size12,7 l12,7 l12,7 l12,7 l
Motor retarder - braking power262 kw (356 ch)262 kw (356 ch)262 kw (356 ch)262 kw (356 ch)
NameDC13 05 400 XPI - Scania EGRDC13 06 360 XPI - Scania EGRDC13 07 480 XPI - Scania EGRDC13 10 440 XPI - Scania EGR
Oil capacity40 l40 l40 l40 l
Power294 kw à 1900 tr/min265 kw à 1900 tr/min353 kw à 1900 tr/min324 kw à 1900 tr/min
Torque2100 Nm à 1000-1300 tr/min1850 Nm à 1000-1300 tr/min2500 Nm à 1000-1300 tr/min2300 Nm à 1000-1300 tr/min
Key
  • : Standard equipment
  • : Equipments in option

Notes :

1 The information and pictures of this technical sheet are given on an indicative basis. All these data may be modified by the manufacturer. For more information, you can directly go to your dealership.
