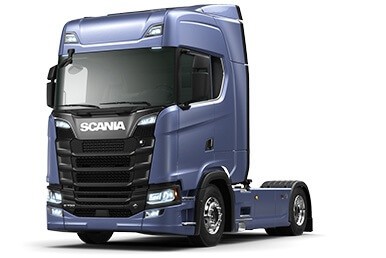

TECHNICAL SHEET Scania Tractor unit Scania R 360 / 400 / 440 / 480 Euro 5 1 Scania

Main characteristics

Range R
Model 360 / 400 / 440 / 480 Euro 5
Version LA4x2MN(L)A(B)
Type of vehicle Tractor
Axles configuration 4x2
Empty weight -
GVWR 19 000 kg
Maximum allowable weight 44 000 kg
Max. front weight 7 500 kg / 7 100 kg/ 8 000 kg/ 8 500 kg/ 9 000kg
Max. back weight 13 000 kg
Used scania tractor unit Used scania r tractor units
360 / 400 / 440 / 480 Euro 5

Measurements Tractor unit Scania R 360 / 400 / 440 / 480 Euro 5

dimensions
CR19CR19 Top LineCR19 High Line
Model3335373935373933353739
A / Overall length5,533 m5,783 m5,933 m6,133 m5,783 m5,933 m6,133 m5,5335,7835,9336,133
B / Width2,476 m
C / Chassis cab width0,925 m
D / Chassis cab width rear under-frame2,375 m2,625 m2,775 m2,975 m2,625 m2,775 m2,975 m2,375 m2,625 m2,775 m2,975 m
E / Front overhang1,458 m
F / Wheel base3,30 m3,55 m3,70 m3,90 m3,35 m3,70 m3,90 m3,30 m3,55 m3,70 m3,90 m
H1 / Empthy chassis height (front)-
H1 / Loaded chassis height (front)-
N / Rear overhang0,775 m
T / Empty cab height-
Y / Max. fifth wheel lead 0,674 m0,721 m0,740 m0,775 m0,686 m0,704 m0,736 m0,666 m0,712 m0,731 m0,765 m
Y / Minimum fifth wheel lead0,264 m0,277 m0,272 m0,282 m0,234 m0,229 m0,235 m0,254 m0,266 m0,262 m0,270 m
Y / Standard fifth wheel lead0,360 m0,510 m0,660 m-0,510 m0,660 m-0,360 m0,510 m0,660 m-
Turning radius inbetween walls7,0 m7,3 m7,5 m7,9 m7,3 m7,5 m7,9 m7,0 m7,3 m7,5 m7,9 m

Masses

CR19CR19 Top LineCR19 High Line
Model3335373935373933353739
Total weight7 106 kg7 204 kg7 303 kg7 318 kg7 393 kg7 492 kg7 507 kg7 152 kg7 250 kg7 349 kg7 354 kg
Minimum weight on front axle4 050 kg
Minimum weight on rear axle1 350 kg
Chassis cab front axle weight5 033 kg5 067 kg5 122 kg5 143 kg5 217 kg5 272 kg5 293 kg5 069 kg5 103 kg5 158 kg5 179 kg
Chassis cab rear axle weight2 073 kg2 137 kg2 181 kg2 175 kg2 176 kg2 220 kg2 214 kg2 083 kg2 147 kg2 191 kg2 185 kg

Engines

NameDC13111DC13112DC13113DC13114
Administrative power34 cv34 cv34 cv34 cv
Bore × stroke130 mm x 160 mm130 mm x 160 mm130 mm x 160 mm130 mm x 160 mm
Coolant (without retarder)----
Cooling circuit (with retarder)40 l (+12 l)40 l (+12 l)40 l (+12 l)40 l (+12 l)
Engine size12,7 l12,7 l12,7 l12,7 l
Motor retarder - braking power261 kw(355 ch)261 kw (355 ch)261 kw (355 ch)261 kw (355 ch)
NameDC13 111 480 PDE - Scania SCRDC13 112 440 PDE - Scania SCR / DC13 121 440 PDE - Scania EEVDC13 113 400 PDE - Scania SCR / DC13 120 400 PDE - Scania EEVDC13 114 360 PDE - Scania SCR
Oil capacity36 l36 l36 l36 l
Overeating
PowerPuissance : 353 kw à 1900 tr/minPuissance : 323 kw à 1900 tr/min294 kw à 1900 tr/min265 kw à 1900 tr/min
TorqueCouple 2400 Nm à 1000 - 1350 tr/minCouple 2300 Nm à 1000-1300 tr/min2100 Nm à 1000-1300 tr/min1850 Nm à 1000-1300 tr/min
Type of injection
Key
  • : Standard equipment
  • : Equipments in option

Notes :

1 The information and pictures of this technical sheet are given on an indicative basis. All these data may be modified by the manufacturer. For more information, you can directly go to your dealership.
