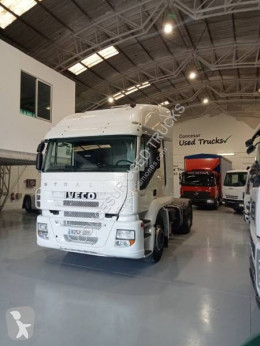

TECHNICAL SHEET IVECO Tractor unit IVECO Stralis AD 440 S 42/46/48 TP-HR 1 IVECO

Main characteristics

Range Stralis
Model AD 440 S 42/46/48 TP-HR
Type of vehicle Tractor
Axles configuration 4x2
Empty weight -
GVWR 19 000 kg
Maximum allowable weight 44 000 kg
Max. front weight 8 000 kg
Max. back weight 13 000 kg
AD 440 S 42/46/48 TP-HR

Measurements Tractor unit IVECO Stralis AD 440 S 42/46/48 TP-HR

dimensions
Hi-Street
Model3638
A / Overall length6,068 m6,248 m
B / Width2,550 m
C / Chassis cab width-
D / Chassis cab width rear under-frame-
E / Front overhang1,410 m
F / Wheel base3,610 m3,790 m
H1 / Empthy chassis height (front)0,952 m
H1 / Loaded chassis height (front)0,922 m
N / Rear overhang1,048 m
T / Empty cab height2,954 m
Y / Max. fifth wheel lead 0,880 m0,920 m
Y / Minimum fifth wheel lead0,270 m0,280 m
Y / Standard fifth wheel lead-
Turning radius inbetween walls7,100 m7,300 m

Masses

Hi-Street
Model3638
Total weight7 160 kg7 170 kg
Minimum weight on front axle-
Minimum weight on rear axle-
Chassis cab front axle weight4 920 kg4 930 kg
Chassis cab rear axle weight2 240 kg

Engines

NameCursor 11 / CNG E6-F3GFE611ACursor 11 / CNG E6-F3GFE611BCursor 11 / CNG E6-F3GFE611D
Administrative power30 cv30 cv30 cv
Bore × stroke128 x 144 mm128 x 144 mm128 x 144 mm
Cooling circuit---
Engine size11,118 L11,118 L11,118 L
Max. power353 kW (480 ch) de 1550 à 1900 tr/min338 kW (460 ch) de 1575 à 1900 tr/min309 kW (420 ch) de 1550 à 1900 tr/min
Maximum torque2250 Nm de 1050 à 1550 tr/min2150 Nm de 1050 à 1550 tr/min1900 Nm de 1050 à 1550 tr/min
Motor retarder - braking power---
NameCNG E6-F3GFE611A CNG E6-F3GFE611B CNG E6-F3GFE611D
Oil capacity26 L26 L26 L
Key
  • : Standard equipment
  • : Equipments in option

Notes :

1 The information and pictures of this technical sheet are given on an indicative basis. All these data may be modified by the manufacturer. For more information, you can directly go to your dealership.
