TECHNICAL SHEET IVECO

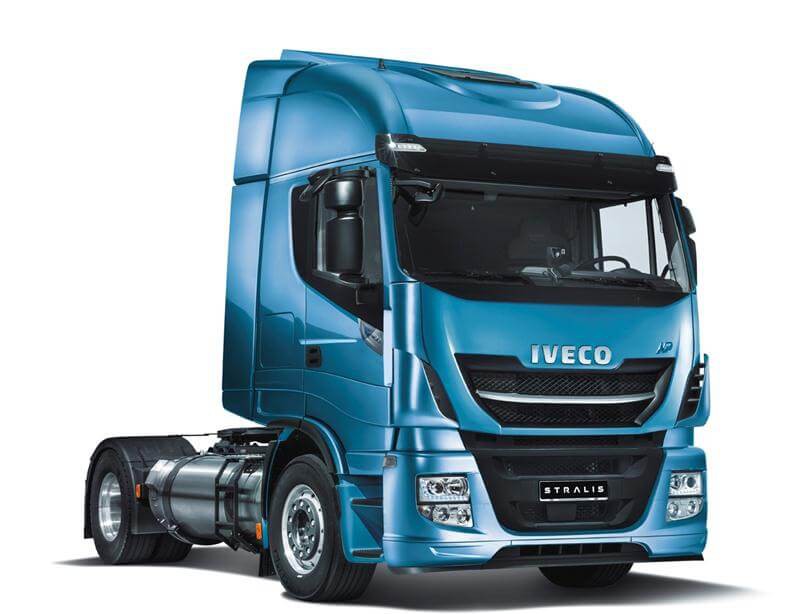

Tractor unit IVECO Stralis AD 440 S 33 TP CNG 1

IVECO

Main characteristics

Range Stralis
Model Ad 440 s 33 tp cng
Type of vehicle Tractor
Axles configuration 4x2
GVWR 19 000 kg
Maximum allowable weight 44 000 kg
Max. front weight 7 500 kg
Max. back weight 13 000 kg
Used Iveco tractor unit Used Iveco Stralis tractor units
Tractor unit IVECO Stralis AD 440 S 33 TP CNG

Measurements Tractor unit IVECO Stralis AD 440 S 33 TP CNG

AD 440 S 33 TP CNG
Hi-Street
Wheel base38

A / Overall length

6,254 m

B / Width

2,500 m

C / Chassis cab width

-

D / Chassis cab width rear under-frame

-

E / Front overhang

1,410 m

F / Wheel base

3,796 m

N / Rear overhang

1,048 m

H1 / Empthy chassis height (front)

0,972 m

H1 / Loaded chassis height (front)

0,912 m

T / Empty cab height

2,952 m

Y / Minimum fifth wheel lead

0,340 m

Y / Max. fifth wheel lead

0,990 m

Y / Standard fifth wheel lead

-

Turning radius inbetween walls

7,3 m

Masses

Hi-Street
Wheel base38

Engines CNG E6-F2BFA60ID

NameCNG E6-F2BFA60ID
Engine size7,79 l
Bore × stroke 115 x 125 mm
Administrative power27 cv
Max. power243 kW de 1785 à 2000 tr/min
Maximum torque1300 Nm de 1200 à 1785 tr/min
Oil capacity12,5L
Cooling circuitRadiateur, pompe à eau et ventilateur électromagnétique
Motor retarder - braking power500kW (3 200 Nm)
Key
  • : Standard equipment
  • : Equipments in option

Notes :

1 The information and pictures of this technical sheet are given on an indicative basis. All these data may be modified by the manufacturer. For more information, you can directly go to your dealership.
